Quick Details

  • Type: Inkjet Printer
  • Condition: New
  • Plate Type: Roll to roll
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: A-Starjet roll to roll UV printer
  • Model Number: 7702L, 7703L
  • Usage: Card Printer, Cloths Printer, Label Printer, Paper Printer, UV LED Printer
  • Automatic Grade: Semi-Automatic
  • Color & Page: Multicolor
  • Voltage: AC220-240V,50-60Hz or AC110-120V, 50-60Hz
  • Gross Power: 2500W, Optional IR heater 1200W
  • Dimensions(L*W*H): W x L x H: 4.30 x 0.90 x 1.25(M)
  • Weight: 500Kgs
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details Fumigation-Free Wooden Pallet
Printer Dimension(M): W x L x H 4.30 x 0.90 x 1.25/550Kgs
Packing Dimension(M):W x L x H 4.50 x 0.98 x 0.70/628Kgs
6 Sets for 20' Container
Delivery Time Within 3 Days After Payment Received



   ______________________________________________________________________________________________________

Specification

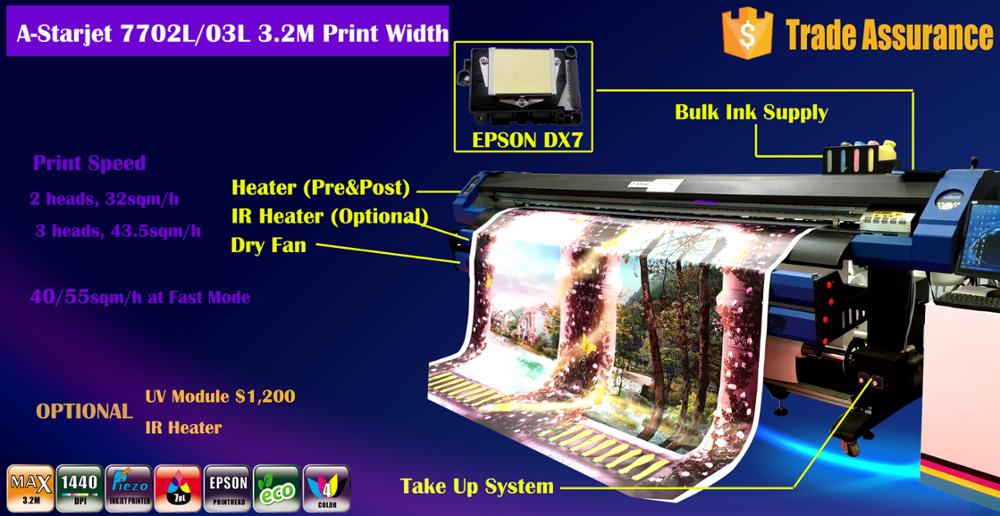

ItemA-starjet 7702L UVA-starjet 7703L UV
Print HeadTwo DX7 print headsThree DX7 print heads
Color4 Colors:KCMY/KCMY+White(Optonal)
Resolution1440Dpi(Max)
Height of head2-5mm
Size of ink droplet1.5-21pl
Printing width3100mm3100mm
Media width3300mm3300mm
Speed3 pass35.9m²/hour48m²/hour
4 pass29m²/hour38m²/hour
6 pass17/hour25m²/hour
8 pass12.5m²/hour19m²/hour
Feeder/Take upStandard/Tension and Speed Controllable
Payload250kgs250kgs
Heating systemPrint heater and Post heater with PID temperature control
InkUV for Micro Piezo head
Ink cartridge8× 350ml ink cartridges12× 350ml ink cartridges
RIP softwareIprint 3.8.2/Optional Photoprint, Wasatch, Onyx, SDK available
PC systemWin XP & Win 7
Power VoltageAC220-24V 50-60Hz or AC110-120V 50-60Hz
EnvironmentTemperature:20-50℃ ,Humidity:40-60%
Printer DimensionW4300× D900× H1250 mm
Packing DimensionW4500× D980× H700 mm
Net/Gross weight550/628Kgs
    ______________________________________________________________________________________________________
Printed Sample  *Print at 4+4 Pass, picture shoot by Iphone 6

______________________________________________________________________________________________________



ACHIEVEMENTS

Terminator Image(Changzhou) Tech. Co., Ltd was a software developer founded in 2006. It's major R&D developers had engaged in cutting, printing industry over 10 years before founding the company. In 2008 we built our own factory and launched the A-Starjet series printers. A legend begins...

2008

A-Starjet 5.5

The first eco-solvent printer in

China.

2010

A-Starjet 5.5L/5L

The first 3.2M eco-solvent printer in the world.

Early 2011

A-Starjet NEO

The most affordable

printer uses DX5 head.

July 2012

A-Starjet 77802/L

The first auto calibrate double side printer in the world.

March 2013

A-StarCut Roll to Roll

The first roll to roll label finisher

March 2014

A-Starcut sheet
The first auto sheet-fed label finisher.



   ______________________________________________________________________________________________________



After-Sale Service

Efficiency and expreience are what make A-Starjet outstanding.

We provide 15 months guarantee for printer's boards etc.
